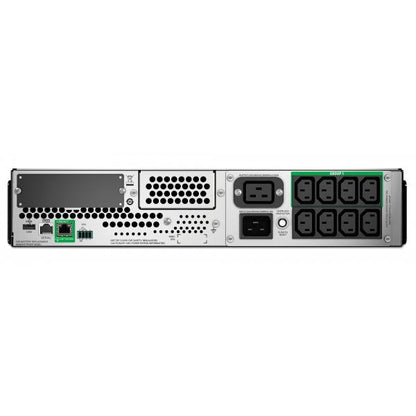

APC SMART UPS 2200VA LCD RACKMOUNT 2U 230V WITH SMARTCONNECT [SMT2200RMI2UC]

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

Intelligent and efficient power protection for networks between entry level runtime and scalable runtime. Ideal for servers, POS terminals, routers, switches, hubs and other network devices.

Cold start capability
Provides temporary battery power in the absence of other sources.

Counter
Provides actual consumption in kilowatt hours for energy-conscious users

Green fashion
Operational mode, for which a patent has been applied for, which bypasses unused electrical components under good power conditions to achieve a high degree of operational efficiency without sacrificing any protection.

High online efficiency
It reduces electricity costs and generates less heat

Intuitive LCD interface
It provides clear and precise information in numerous languages ​​with the ability to configure the UPS locally via easy-to-use navigation codes.

Battery replacement date prediction
It independently indicates the month and year in which battery replacement is recommended to aid long-term maintenance planning.

Pure sine wave output on the battery
Simulates mains power to ensure the highest level of compatibility for power factor corrected servers and sophisticated electronics.

Sequential network shutdown and restart
Configuration of selected socket groups to switch off and on in a predetermined order (for UPS with socket groups activated).

Single group of switched outlets
Single outlet group that can be controlled separately from the UPS for selective rebooting of locked devices, sequential powering on and off, and shedding of non-critical loads.

SmartConnect
Innovative and easy-to-use remote monitoring function, providing automatic notifications, firmware updates and advanced support services.

SmartSlot
Possibility to customize the UPS functions via the management cards.

Compatible with StruxureWare Data Center Expert
Enable centralized management via APC InfraStruXure® Central.

Temperature compensated battery charging
Extends battery life by adjusting charging voltage based on actual battery temperature.

Display type	LCD
Rack mounting kit	Yes
Software CDs	Yes
Packaging depth	980mm
Humidity	0 - 95%
Sustainability certificates	Green Premium, RoHS
Cables included	RS-232, USB Cable
Quantity per pallet	8 pcs
Audible alarm mode	Alarm when running on battery, Low battery alarm
Weight	42.3kg
SmartSlot	Yes
Input operating voltage (max)	302V
UPS topology	Online interactive
Certification	CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Output voltage (max)	240V
Battery life (max)	5 year(s).
Response time	6 ms
Operating humidity range	0 - 95%
Input operating voltage (min)	151 V
Cable length	2 m
Operating altitude	0 - 3000 m
Replacement battery cartridge	RBC43
Charging time	3 hours
USB 2.0 port quantity	1
Depth	683 mm
USB port	Yes
Form factor	Rack mounting
Packaging width	600 mm
Ethernet LAN ports quantity (RJ-45)	1
Operating temperature range	0 - 40°C
Battery technology	Lead Acid (VRLA)
Waveform	Sinusoidal
Rack capacity	2U
Harmonized System (HS) Code	85078000
Quantity of AC outlets	9 AC outlet(s).
Serial interface	Yes
USB port type	USB type A
Serial interface type	RJ-45
Temperature range	-15 - 45 °C
Energy overload evaluation	375 J
Acoustic emission	55 dB
Number of batteries	1
Audible alarms	Yes
Product color	Black, Metallic
Output power	1980W
Total Harmonic Distortion (THD) output voltage	5%
Input frequency	50/60 Hz
Power protection features	Overload
Length	432 mm
Output operating voltage (min)	220V
Packaging weight	49.7kg
Height	86 mm
Non-operating altitude	0 - 15000m
Packaging height	254 mm
