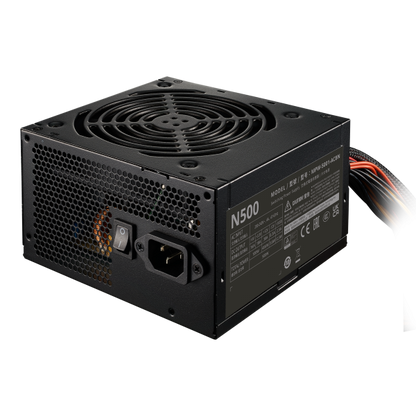

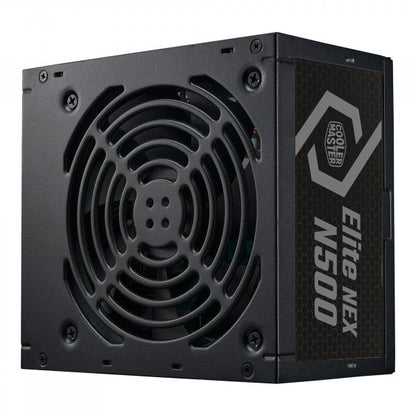

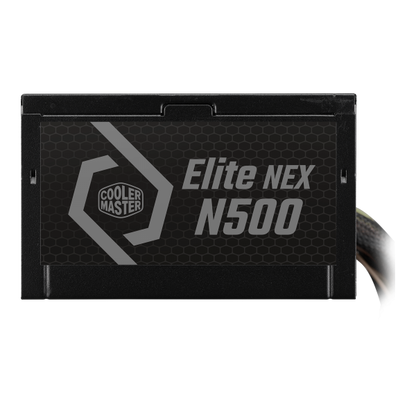

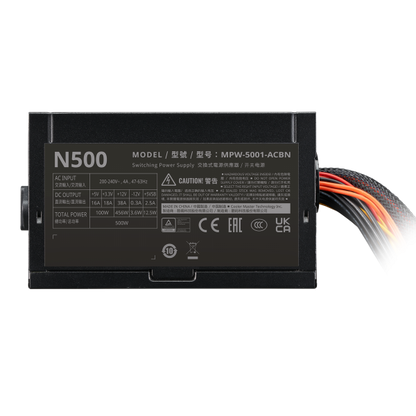

Cooler Master Elite NEX 230V 500 computer power supply 500 W 24-pin ATX Black [MPW-5001-ACBN-BEU]
Cooler Master Elite NEX 230V 500 computer power supply 500 W 24-pin ATX Black [MPW-5001-ACBN-BEU]
Visualizza tutti i prodotti COOLER MASTER
Regular price
€56,28
Regular price
€54,45
Sale price
€56,28
Unit price
/
per
€46,13 IVA esclusa.
Share
Processing times
Processing times
Usually dispatched within ➤ 1-2 working days
Delivery time
Delivery time
Delivery time (usually) ➤
1-2 working days
(NB: This sheet is to be considered purely informative and does not contain any type of guarantee, either implicit or explicit.)
80 PLUS certification | No |
Device power cable length (Molex) | 550,700,400 mm |
Power Good signal delay range | 100 - 500 ms |
Maximum output current (-12V) | 0.3A |
AC input frequency | 50/60 Hz |
Packaging depth | 245 mm |
Quantity per master carton | 5 pcs |
Combined power (+5Vsb) | 12.5W |
Quantity per pallet | 64 pcs |
Length of the motherboard power cable | 55cm |
Maximum output current (+5Vsb) | 2.5A |
Weight | 1.39kg |
PCI Express power cable length | 62cm |
Combined Power (-12V) | 3.6W |
Length of main carton | 503 mm |
Waiting time | 10 ms |
Certification | ErP 2014 Lot 3, TUV, CCC, EAC |
Cooling type | Active |
Main box width | 260 mm |
Efficiency | 75% |
Combined power (+5V) | 100W |
Input current | 4 A |
Motherboard connector | 24-pin ATX |
Usage | PC/server |
AC input voltage | 200 - 240V |
Combined power (+12V) | 456W |
Main box height | 220 mm |
Depth | 140 mm |
Mean Time Between Failures (MTBF) | 100000 h |
PCI Express connectors (6+2 pins) | 2 |
Total power | 500W |
Power Factor Corrector (PFC) Type | Active |
Packaging width | 190 mm |
Number of SATA connectors | 5 |
SATA power cable length | 400,550,700 mm |
EPS power connector (4+4 poles) | Yes |
Operating temperature range | 0 - 40°C |
EPS cable length | 55cm |
Peripheral Connectors (Molex) (4-pin) | 3 |
ATX version | 2.41 |
Maximum output current (+3.3V) | 18 A |
Maximum output current (+5V) | 16 A |
Product color | Black |
Maximum output current (+12V) | 38 A |
Combined Power (+3.3V) | 100W |
Power protection features | Overcharging, Overheating, Overload, Underload, Short circuit |
Bearing technology | Sleeve |
Number of fans | 1 fan(s) |
Length | 150 mm |
Packaging weight | 1.76kg |
Height | 86 mm |
Fan diameter | 12cm |
Packaging height | 95mm |
