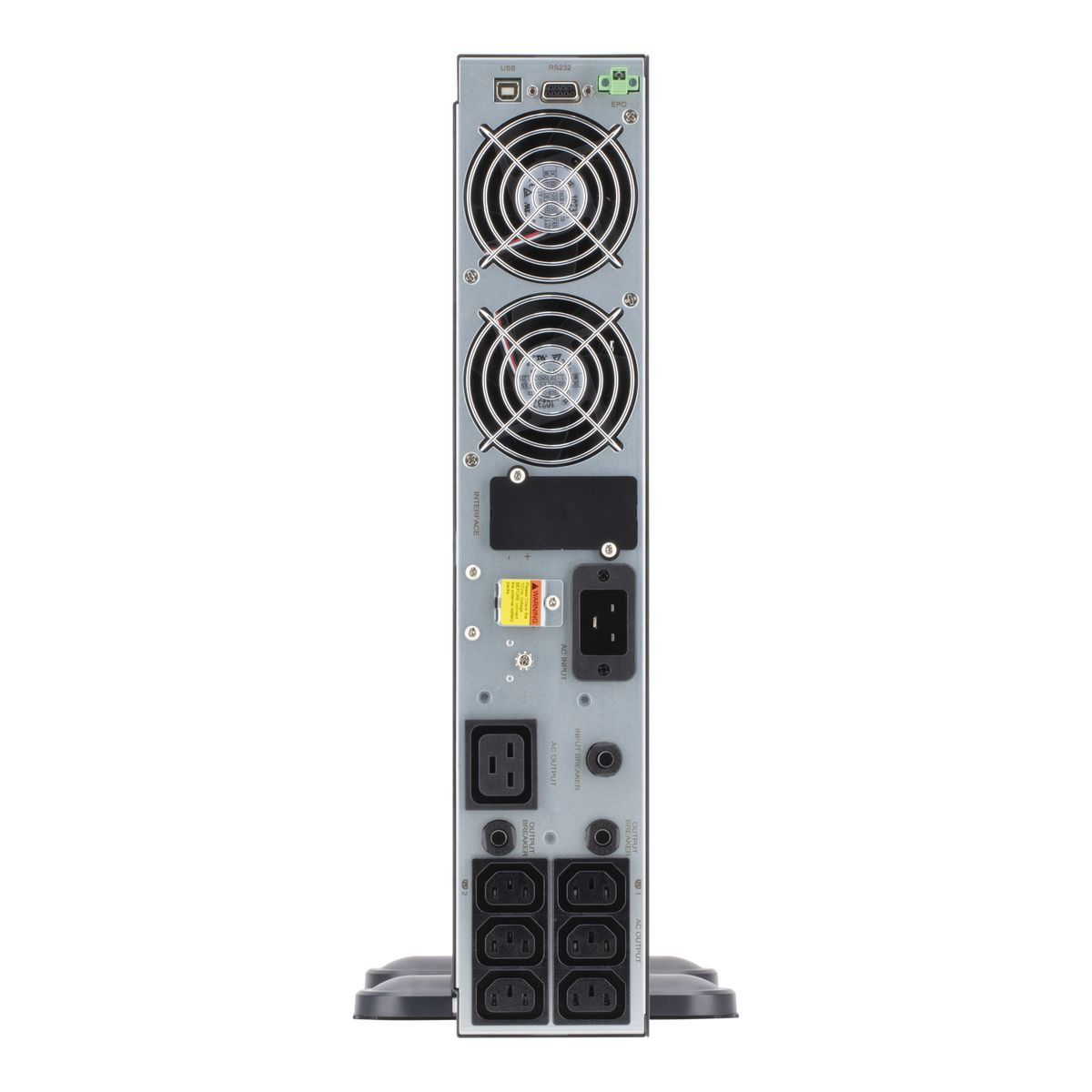

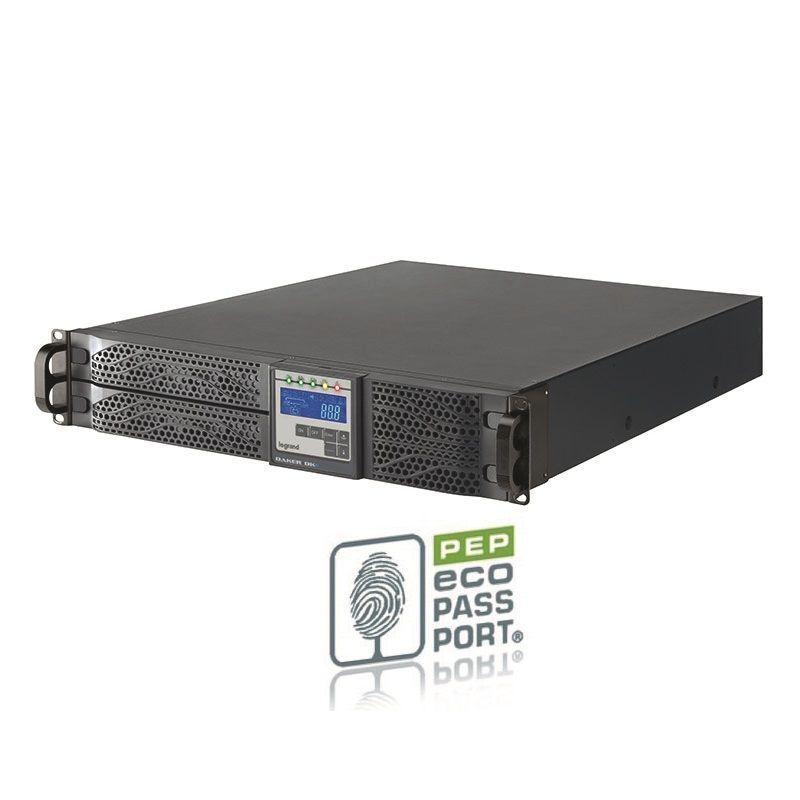

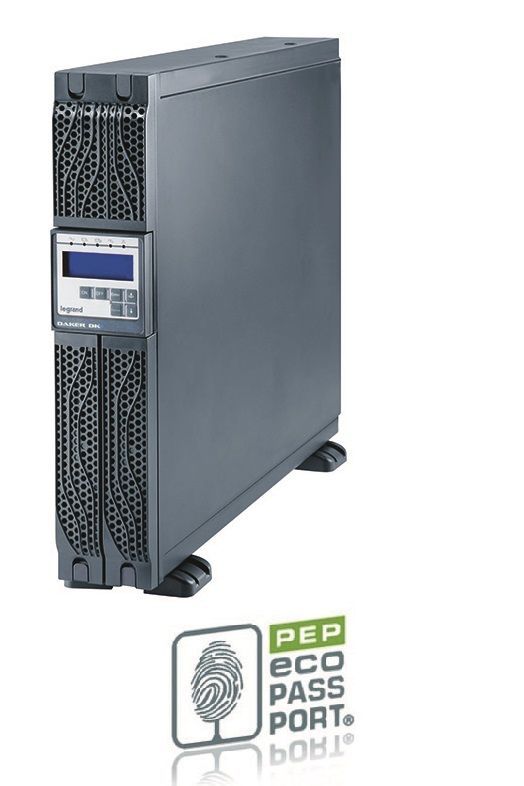

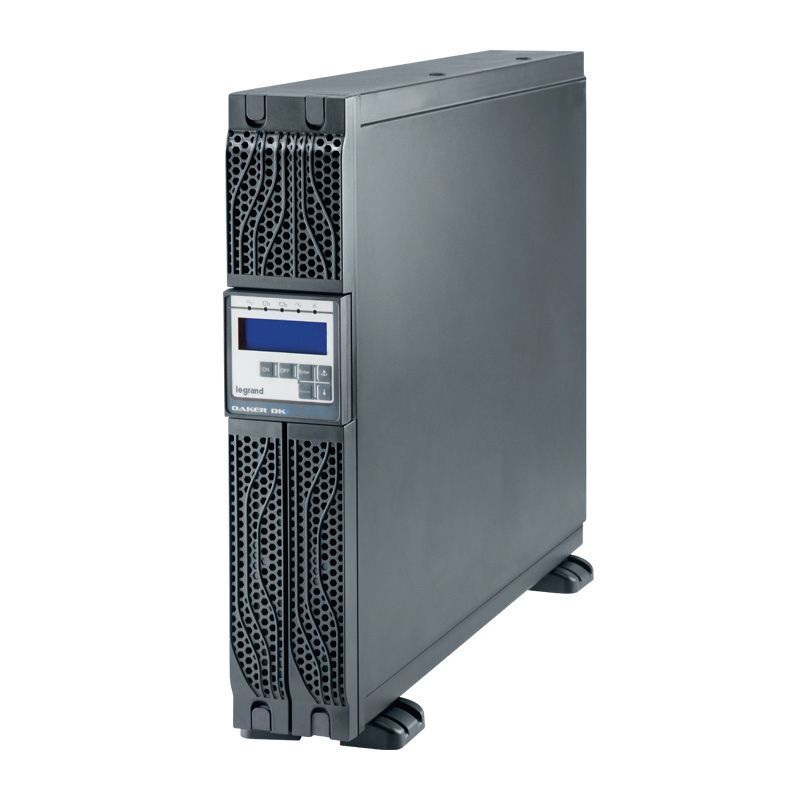

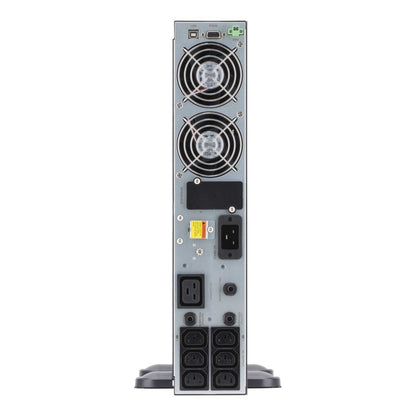

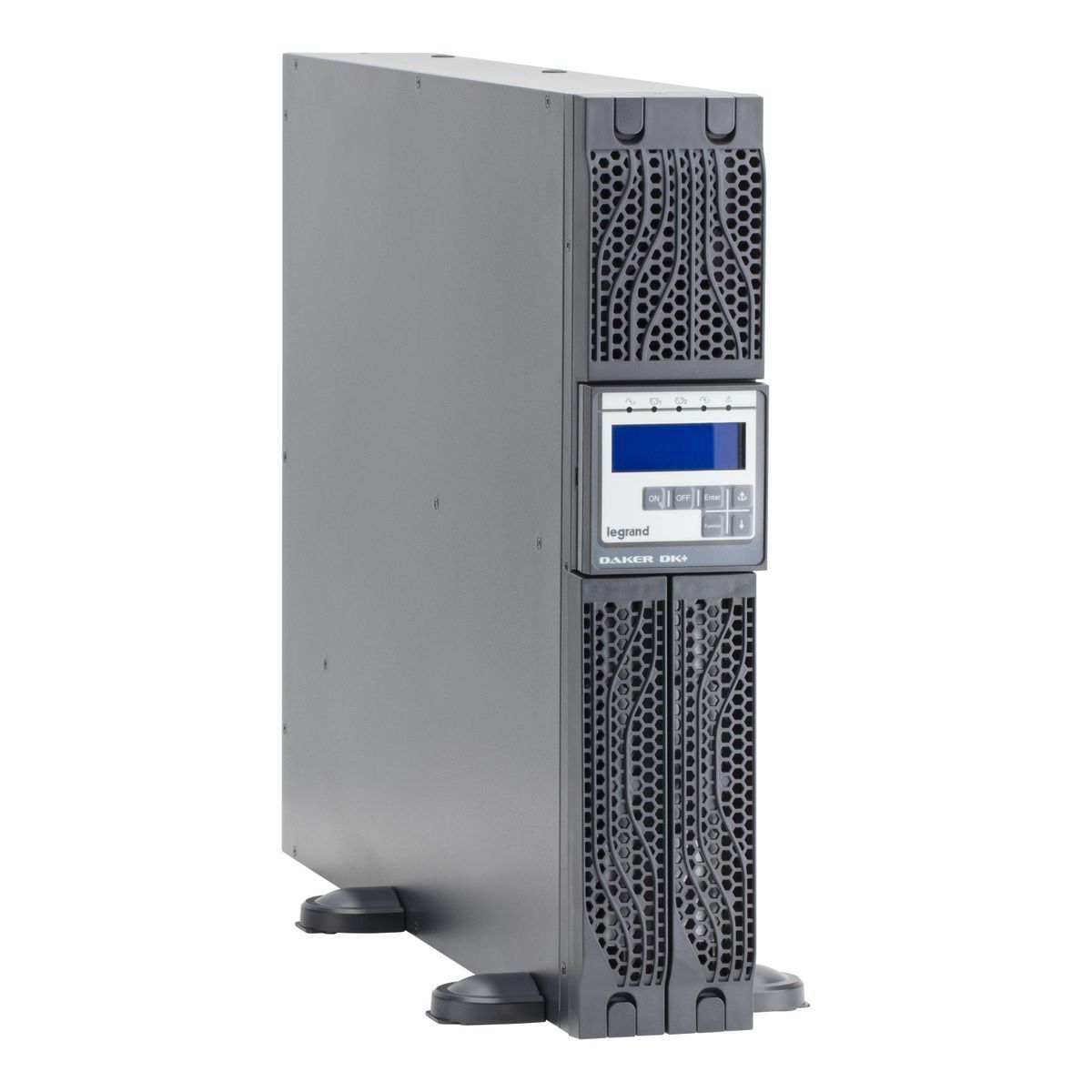

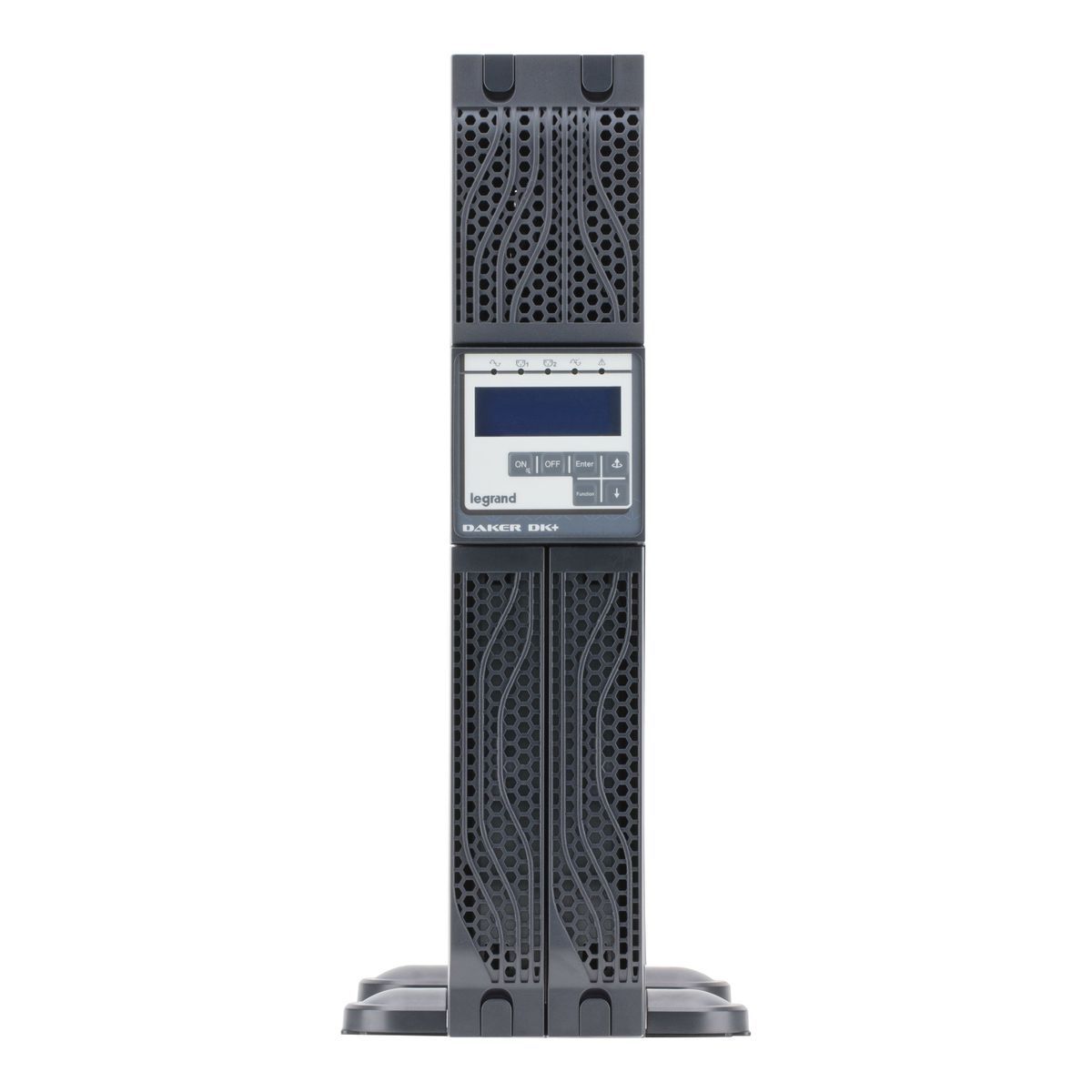

Legrand Daker DK+ UPS DAKER DK PLUS 3000VA uninterruptible power supply (UPS) Double conversion (online) 3 kVA 2700 W 7 AC socket(s) [LG-310172]

The Daker DK Plus UPS are single-phase uninterruptible power supplies with high frequency PWM technology, On Line Double Conversion type.

They deliver a nominal power of 1000-2000-3000-5000-6000-10000VA, are equipped with hermetic accumulator batteries regulated by valve, contained inside the UPS in a special compartment or in one or more external cabinets.

Thanks to the reversible display it is possible to use the Daker DK Plus UPS in both a tower and 19-inch rack configuration.

Display type	LCD
Output voltage regulation	1%
Number of input phases	1
Packaging depth	23.2mm
Efficiency (ECO mode)	98%
Quantity per master carton	1 pc
AC output type	Coupler C13, Coupler C19
Quantity per pallet	10 pcs
Weight	30kg
Input operating voltage (max)	280V
UPS topology	Double conversion (online)
Battery voltage	12V
Length of main carton	719 mm
Emergency Power Off (EPO)	Yes
Battery capacity	9 Oh
output frequency	50/60 Hz
Certification	EN 62040-1, EN 62040-2, EN 62040-3
Main box width	560 mm
Efficiency	ninety two%
Output voltage (max)	232V
Net weight of the pallet	296.8kg
Operating humidity range	0 - 95%
Input operating voltage (min)	176V
Automatic shutdown	No
Power socket	C20 coupler
Charging time	4 hours
Main box height	228 mm
Crest factor	3:1
Depth	600 mm
Net pallet depth	100cm
International Security Code (IP)	IP20
Management protocols	Network management,Simple Network Management Protocol (SNMP)
USB port	Yes
Form factor	Rack mounting
Packaging width	88mm
Input power factor	0.99
Operating temperature range	0 - 40°C
Output power factor	0.9
Waveform	Sinusoidal
Rack capacity	2U
Harmonized System (HS) Code	85078000
Quantity of AC outlets	7 AC outlet(s).
Serial interface	Yes
Serial interface type	RS-232
Energy overload evaluation	1530 J
Acoustic emission	50 dB
Number of batteries	6
Net pallet height	141 cm
Product color	Black
Output power	2700W
Total Harmonic Distortion (THD) output voltage	3%
LED indicators	status
Input frequency	47/63 Hz
Length	88mm
Output operating voltage (min)	228V
Packaging weight	28.2kg
Type of power supply	B.C
Net pallet width	120cm
Height	440 mm
Number of output phases	1
Total Harmonic Distortion (THD) current input	3%
Potential-free output	No
Packaging height	440 mm
Weight of main carton	29.7kg
