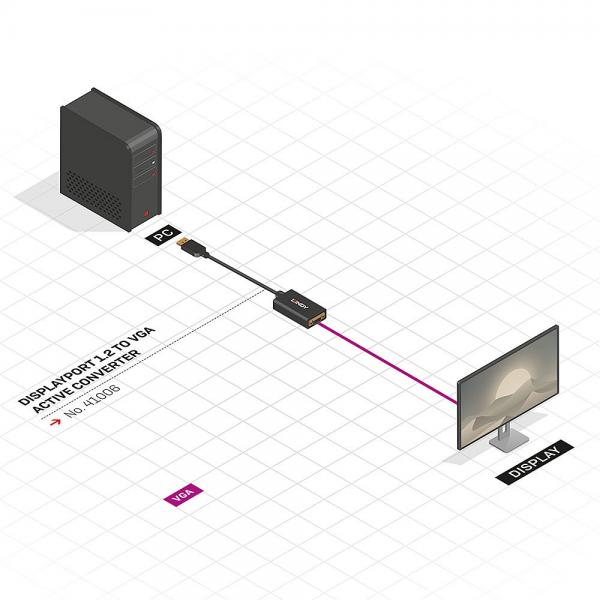

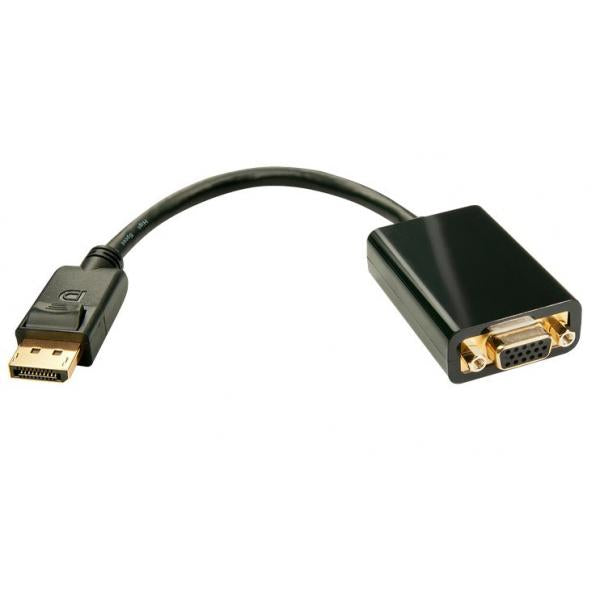

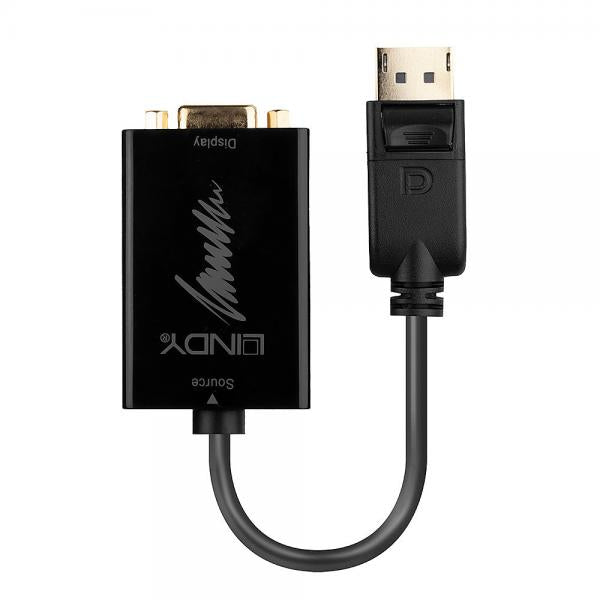

DisplayPort to VGA converter to connect a DisplayPort source such as a PC or laptop to a VGA display. Supports resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards such as AMD Eyefinity, NVIDIA surround and Intel Collage.

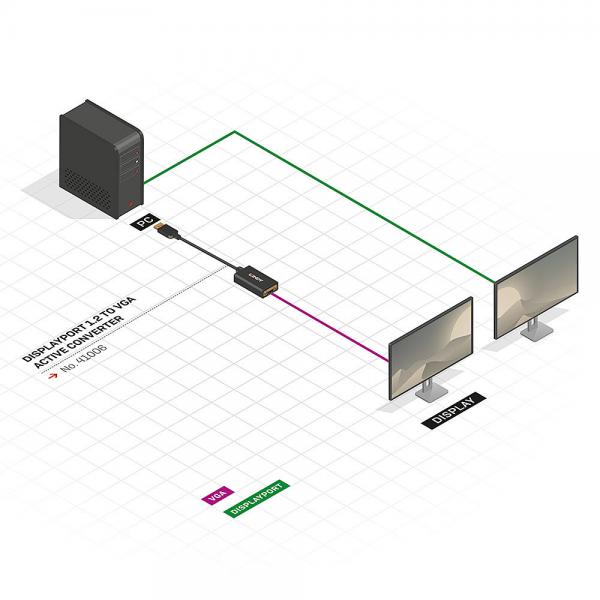

It can be used to add a secondary monitor as a desktop extension or as a copy of your primary monitor. The internal copper shielding offers greater reliability and stability. Thanks to the compact and lightweight design, this converter can be easily carried in a notebook bag, installation is Plug & Play.

Packaging width	160 mm
Connector 2 dimensions (WxDxH)	20 x 36 x 11mm
Chipsets	ANX9833
Connector housing material	Thermoplastic Elastomer (TPE)
Operating temperature range	-20 - 80 °C
Contact plating	Gold
Packaging depth	20 mm
Type of packaging	Polythene bag
Weight	45 g
Harmonized System (HS) Code	84733080
Temperature range	-20 - 70 °C
Plug & Play	Yes
Maximum refresh time	60Hz
Dimensions of connector 1 (WxDxH)	38 x 61 x 17mm
Bending radius (min)	7cm
Covering material	Polyvinyl chloride (PVC)
Product color	Black
Certification	CE, UKCA, FCC, RoHS, REACH
Supported graphics resolutions	1920 x 1080 (HD 1080)
DisplayPort version	1.2
Maximum resolution	1920 x 1080 Pixels
Operating humidity range	20 - 90%
Connector 2	DisplayPort
Connector 1	VGA (D-Sub)
Cable length	0.15m
Quantity per package	1 pc
Packaging weight	49g
Cable diameter	6.5mm
Connector gender 2	Female
Connector gender 1	Male
Connector form factor 1	Straight
Data transfer speed	10.8 Gbit/s
Packaging height	160 mm
Connector form factor 2	Straight
